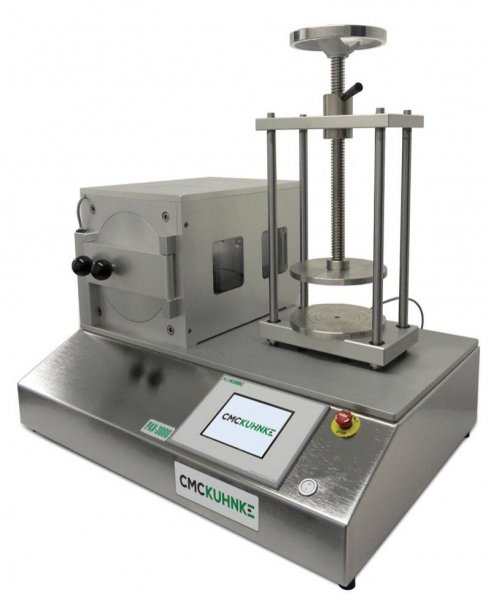

Axial Load/Panel Tester

The Semi-Automated Axial Load / Panel Tester is a combination unit for the safe and accurate testing of axial load and implosion (paneling) for 3-piece cans.

Specifications:

Max Height:  280mm (11 in)

Max Diameter:  153mm (603 in)

Range Axial Load:  10.000 N with overload protection

Range Panel:  Max pressure 45 psi (bar)

Electrical required:  100-240VAC 50-60Hz

Air Pressure required:  90 psi (6 bar) min

Panel measurement units:  bar, kPa, psi

Axial Load Measurement units:  N, kg, Ibs

Output interface:  RS232 Computer Interface

Languages:  English, German, French, Chinese

Dimensions:  607 mm x 708 mm x 887 mm (24 in x 28 in x 35 in)

Resolution Pressure:  0,01 bar (0,15 psi)

Resolution Force:  1,0 N
