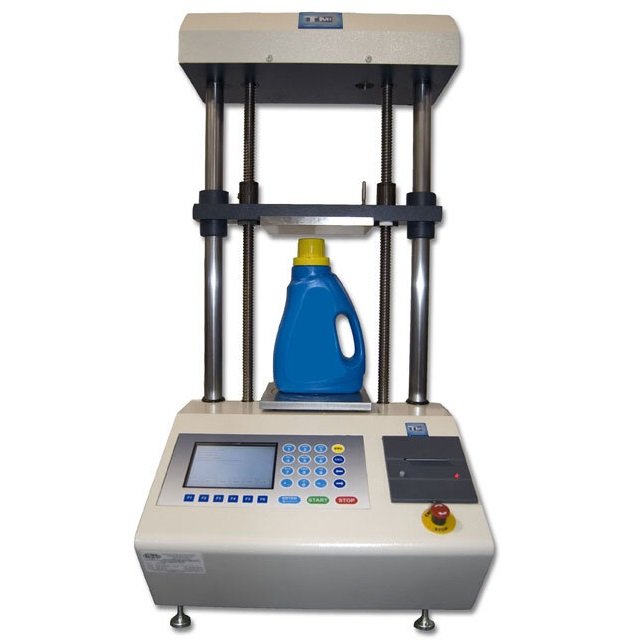

Top Load Compression Tester 17-77

The performance of a container in production and transit is critical to the manufacturer. Product failures during filling, packing, warehousing and shipping are costly and can easily be prevented when containers and finished goods are tested for top-load strength.Top-load strength is an excellent method to optimize the necessary force required to produce deformation and failure of bottles and containers. Top load strength can also identify thinned areas in the wall of the bottle resulting in poor wall-thickness distribution.

Options – Opening Size: 16, 20 and 24 inch

Specifications:

Measuring range: 0 ““ 2000 lb (0- 8896 Newton)

Load Cells: 0-1000 lb., 0-2000 lb. (2225 N, 4450 N, 8896 N)

Accuracy: 1.5% of reading

Stroke length: 16 in (406 mm) or 24 in (609 mm)

Measuring units: N, N/m², lb, lb/in², kg or kg/m²

Test Speed: 0.02 – 20 in/min (0.508 -508 mm/min)

Return Speed: 10 in/min (254 mm/min)

Upper platen size: 13 x 13 in (330 x 330 mm) with 16 in (406 mm) opening

Lower platen size: 13 x 13 in (330 x 330 mm)

Statistics display: Number of tests, Highest value, Lowest value, Average, Standard deviation, Variation coefficient,
