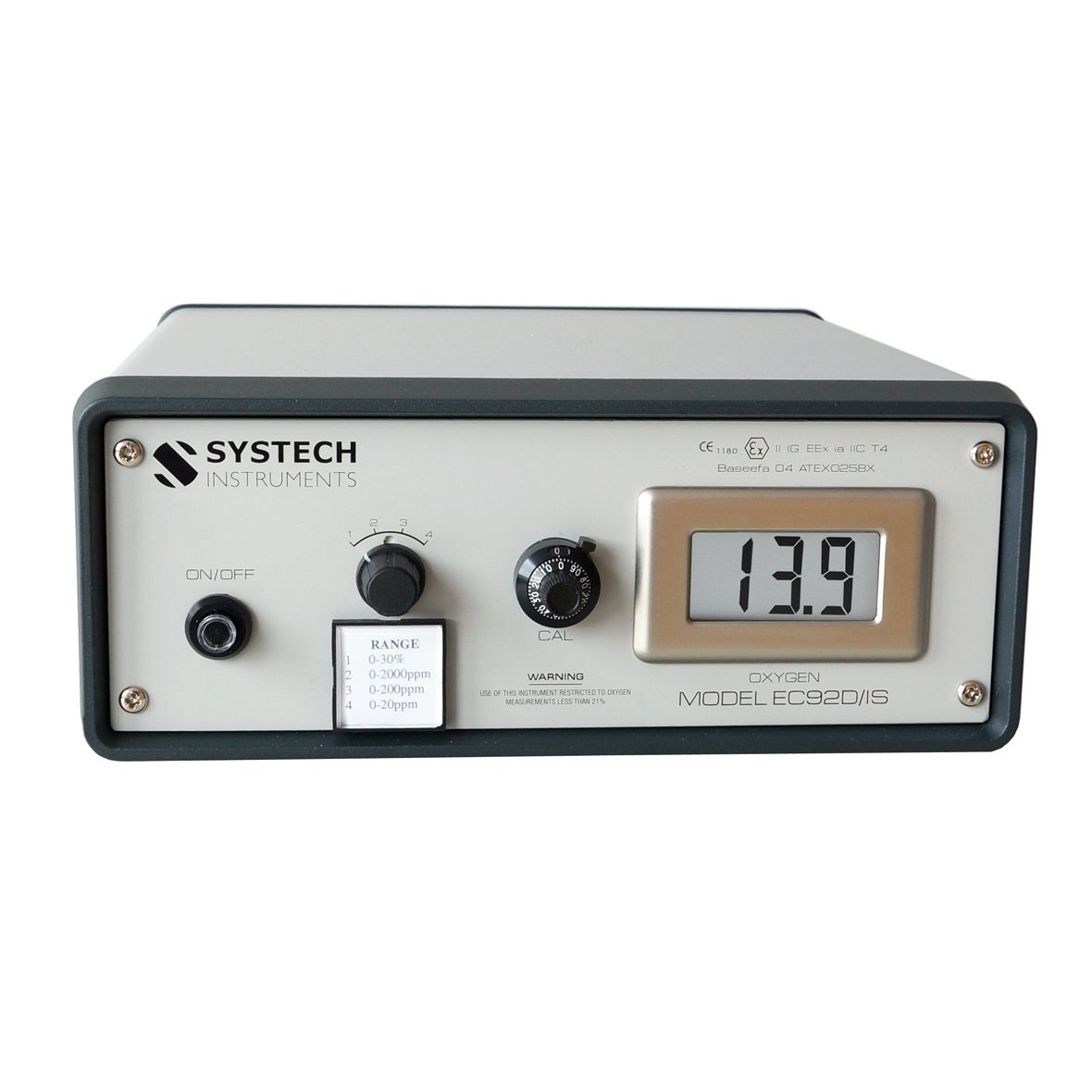

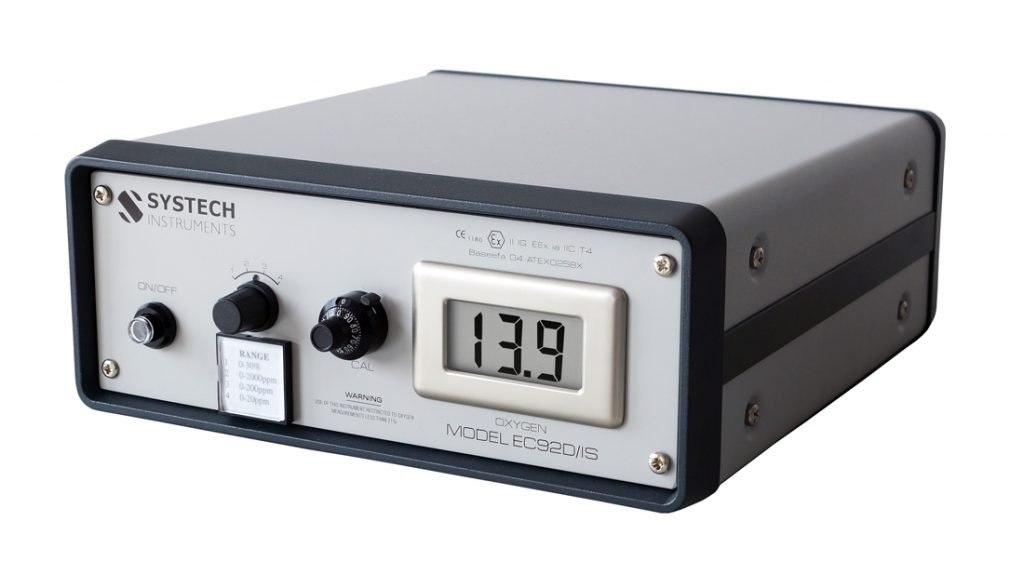

EC92DIS ATEX Portable Oxygen Analyzer

The portable ATEX oxygen analyzer used to measure oxygen levels from Systech Illinois.

The EC92DIS portable oxygen analyzer can be used in hazardous areas – approved for II 1G Ex ia IIc Ga T4 – Zone 0 (ATEX). It is designed to measure oxygen levels and can detect oxygen levels as low as 1ppm, up to high percent oxygen levels and can be used on most industrial gases and atmospheres. There is no need for routine maintenance of the fuel cell, and the oxygen analyzer instrument may be easily calibrated, using ambient air or standard calibration samples.

Specifications:

Gas :  Oxygen

Application :  Intrinsically Safe

Measurement range :  ppm and %

Technology :  Electrochemical

ATEX Approval :  0

Power supply :  2 x PP3 dry batteries, fitted internally

Ingress protection :  IP40

Dimensions :  102H x 257W x 271D mm

Approvals :  ATEX II 1G Ex ia IIC Ga T4
