Brought to you by Systech Illinois, our specialist moisture, gas and oxygen analysis brand, the EC91 is an innovative gas analyzer and oxygen transmitter.

Our team at Systech Illinois has over 30 years of expertise in manufacturing gas analyzers for the process industry. They have an installed base of over a thousand instruments during this time.

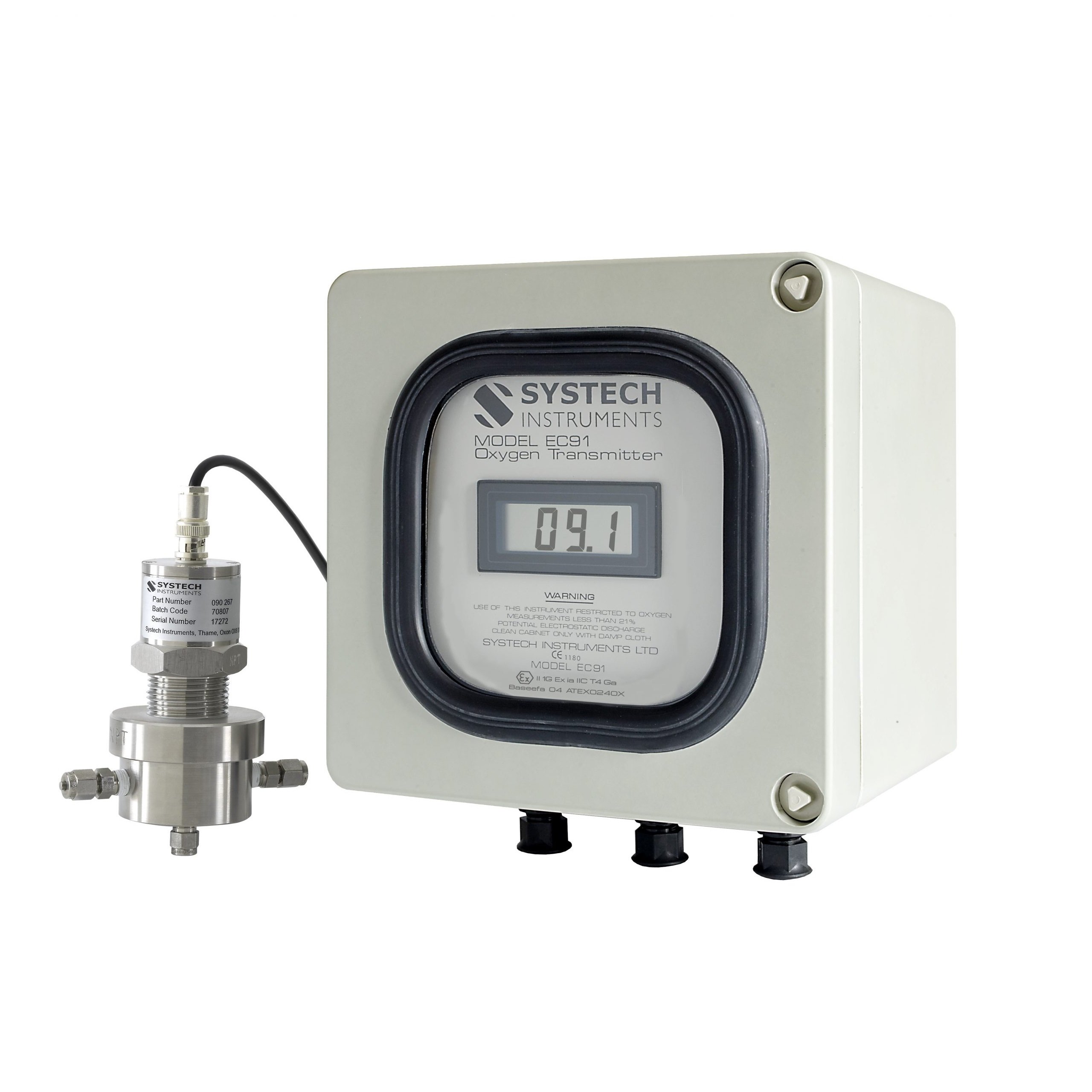

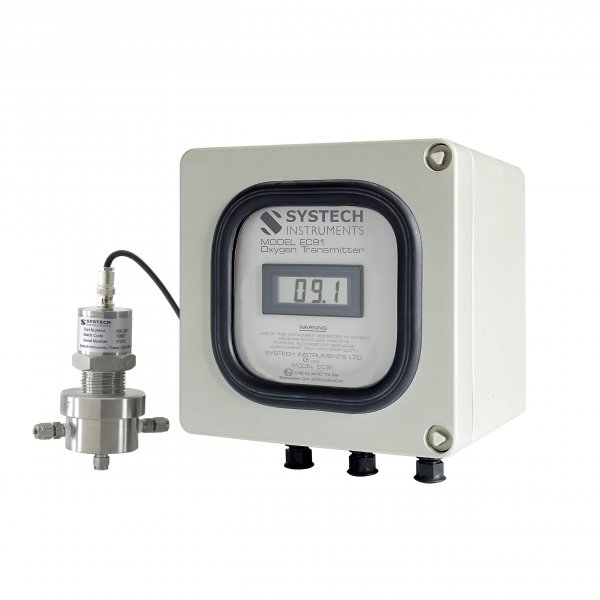

The EC91 intrinsically safe oxygen analyzer is an online transmitter for ppm and percent oxygen measurements of gas streams in hazardous area installations. It can detect oxygen levels from as low as 1 ppm up to much higher percent levels and delivers results in most industrial gasses and atmospheres.

A versatile oxygen analyzer and oxygen transmitter

Whatever your gas analysis needs, the EC91 has got you covered! Here is just a flavor of the many applications it’s ideal for:

Monitoring inert blanketing gas in oil and petrochemical applications
Checking inert gasses and Hydrogen
Oxygen deficiency monitoring
Gas purity inspection
Glove box investigation
Gas line monitoring
Metallurgy

An intrinsically safe gas analyzer

When you’re working in hazardous areas you need the best protection. You’ll find that oxygen analyzers and oxygen transmitters commonly need to be flame-proof, explosion proof or intrinsically safe.

Flame proof or explosion proof instruments are designed to contain any event, in order to protect the close environment. This equipment is expensive. Plus you’ll need a work permit to maintain and – in some cases – to calibrate it.

But intrinsically safe equipment like the EC91 gas analyzer is absolutely safe by design! There’s no risk of an event as there’s not enough energy stored, or available in the circuits to cause one, and work permits aren’t required.

Certified gas analysis protection

The EC91 gas analyzer is certified to IP66 standards. What does that mean? It means you’re protected with an IP (ingress protection) code which shows how well the device responds to water and dust. On top of this it also comes with NEMA 4X certification, a rating for an outdoor electrical enclosure. This means that the device is safe from damaging environmental conditions, including dirt, rain, ice formation, and corrosion.

All of the electronic circuits of the EC91 are also intrinsically safe, certified to ATEX – a European directive for controlling explosive atmospheres.

You can rest assured that the EC91 oxygen analyzer won’t let you down in the most hazardous environments. This even includes ATEX Ex II 1G EX ia IIC T4 Ga – Zone 0 areas.

A rugged oxygen analyzer

The EC91 gas analyzer’s enclosure is manufactured from molded glass fiber reinforced polyester. This is a high-impact resistance material for harsh environments.

Whether it comes up against oils, common acids or alkalis it won’t be harmed. We’re so confident in this gas analyzer that it comes with a 36 month warranty. This covers any faulty workmanship and electronic circuit card component failure.

A no fuss gas analyzer

Where possible, we like to simplify your working life! So, there’s no need for routine maintenance of the EC91 gas analyzer’s fuel cell. Plus the device can be easily calibrated, using ambient air or standard calibration samples.

The EC91 is built for your requirements

Whatever environment you need your oxygen analyzer or oxygen transmitter to succeed in, we can help.

Standard and custom designed sample systems, sample pumps and aspirators are available on request. Plus sample gas may be piped directly to the instrument or remote cell assembly.

An alarmingly safe gas analyzer

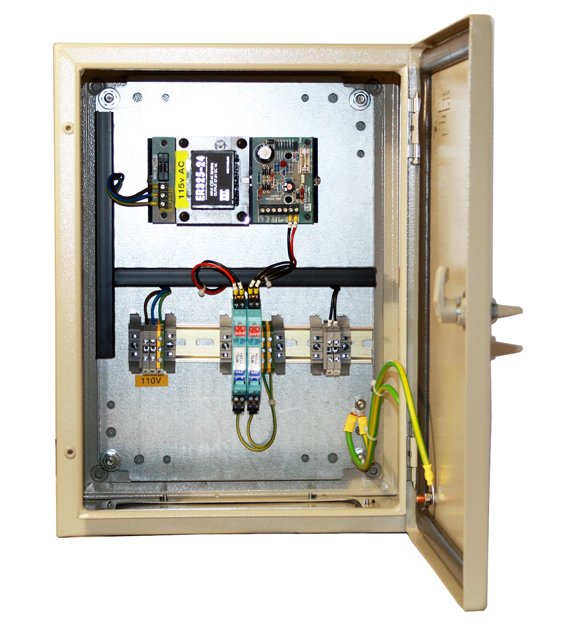

You can specify up to six gas measuring ranges and the EC91 transmits a 4-20mA signal which corresponds to the range of the analyzer. Additionally a safe area digital indicator and alarm is available as an option if you want it.

The EC91 gas analyzer principle of operation

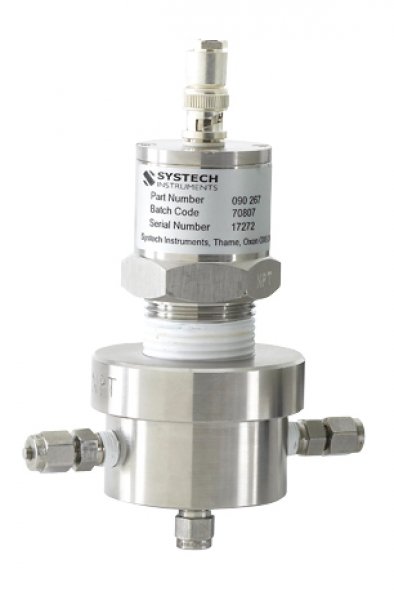

The EC91 gas analyzer has a self-powered sensor with no moving parts which is integral to the sample chamber.

This clever design solves the problem of output changes due to any flow rate change. This makes our oxygen analyzer extremely sensitive and quick to respond to changes in oxygen concentration.

The EC91 sensor contains an anode, electrolyte, and air cathode with a diffusion limiting capillary. The rate of diffusion is dependent upon the volume concentration of oxygen in the atmosphere or gas stream.

At the cathode of our gas analyzer, oxygen is reduced to hydroxyl ions, which oxidize the metal anode. The overall reaction that takes place looks a little like this!

2Pb + O2 + 2H2O → 2Pb(OH)2

The EC91 gas analyzer’s sensor has a guaranteed operational life of six months. But you can expect it to last much longer when checking low oxygen concentrations and when relying on it sporadically. Even if you need to swap a part, the sensor module is inexpensive and easy to replace.

We hope you’ll agree that our brilliant gas analyzer truly is a breath of fresh air!
