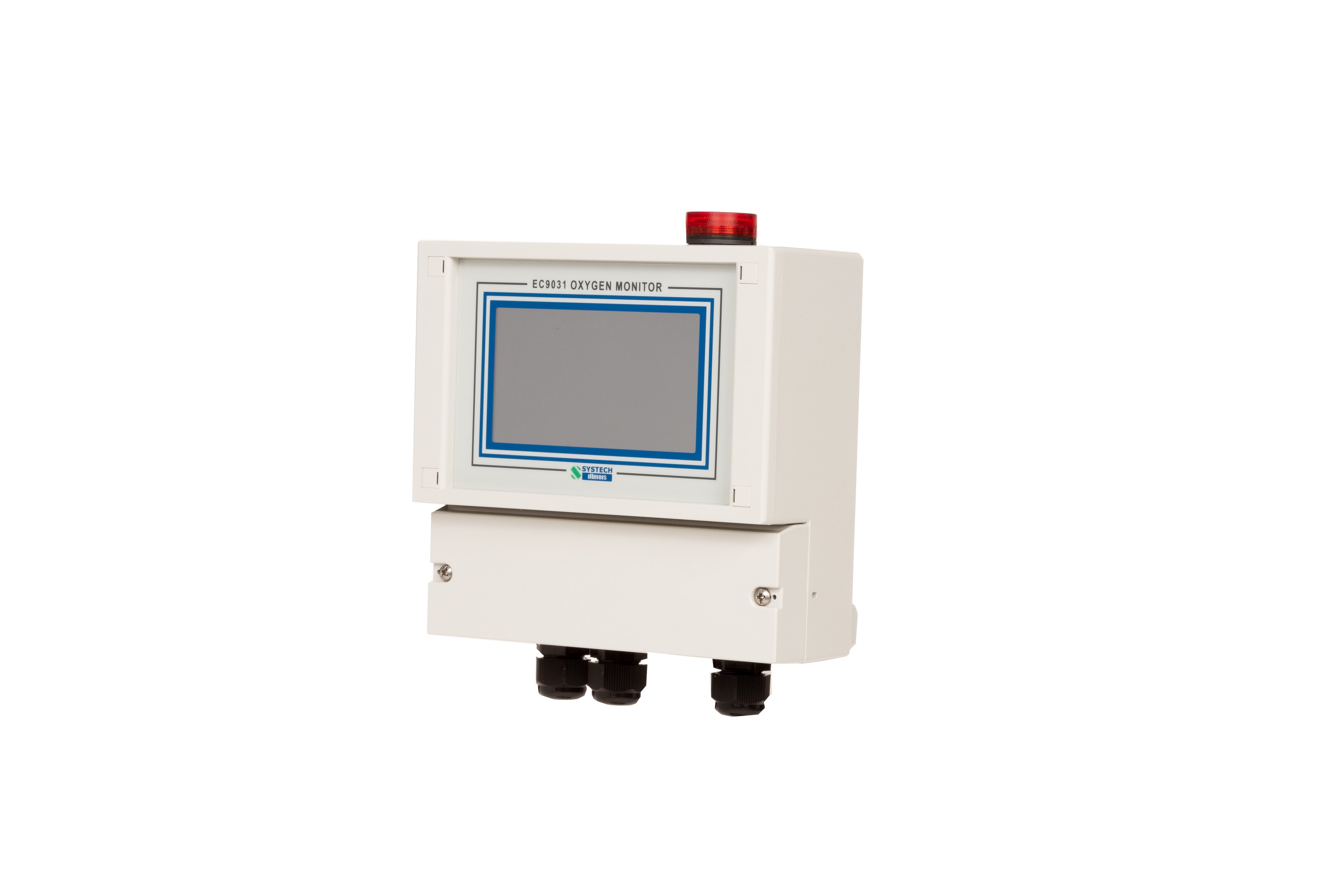

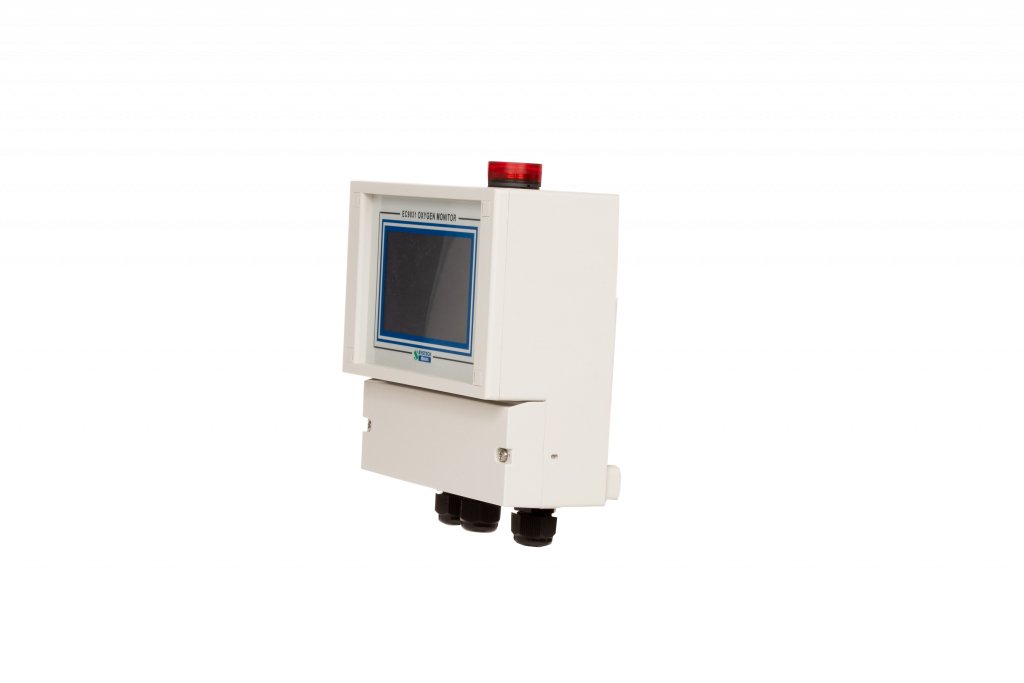

EC9031 Oxygen Deficiency Monitors

Oxygen deficiency monitors are used for the continuous monitoring of oxygen levels in MRI facilities and centers, confined workspaces, inert gas storage areas, breweries, fruit storage facilities or anywhere low or high levels of oxygen may pose a hazard to personnel.

The EC9031 is the most advanced, feature rich oxygen monitor in the world, offering things like adjustable alarm contacts which give early warning of changes in oxygen levels, allowing action to be taken. Complete data event logging. The EC9031 transmits continuous oxygen concentration levels to any control data acquisition system or programmable logic controller. The EC9031 incorporates a diffusion type electrochemical sensor that does not require sample pumping, making it easy to use and calibrate. The sensor is capable of being mounted remotely from the analyzer.

The EC9031 features adjustable alarm contacts which give early warning of changes in oxygen levels, allowing action to be taken. This O2 deficiency monitor transmits continuous oxygen concentration levels to any control data acquisition system or programmable logic controller.

Can be applied in:

• MRI Facilities/Rooms
• Breweries
• Soft drink plants
• Carbon Dioxide (CO2) storage
• Nitrogen plants
• Enclosed work areas
• Welding installations
• Fruit storage facilities
• Ambient air monitoring / confined space entry

Specifications:

Gas detected:  Oxygen

Application :  Oxygen Deficiency

Measurement range :  0-30%

Technology :  Electrochemical

Resolution :  0.01%

Accuracy :  ±0.001%

Response Time :  90% of reading within 20 seconds

Ingress protection :  IP65

Temperature :  0°C – 40°C

RS485:  for O2 readings only
