CMC KUHNKE AUTO-XTS

Double seam inspection with the Auto-XTS

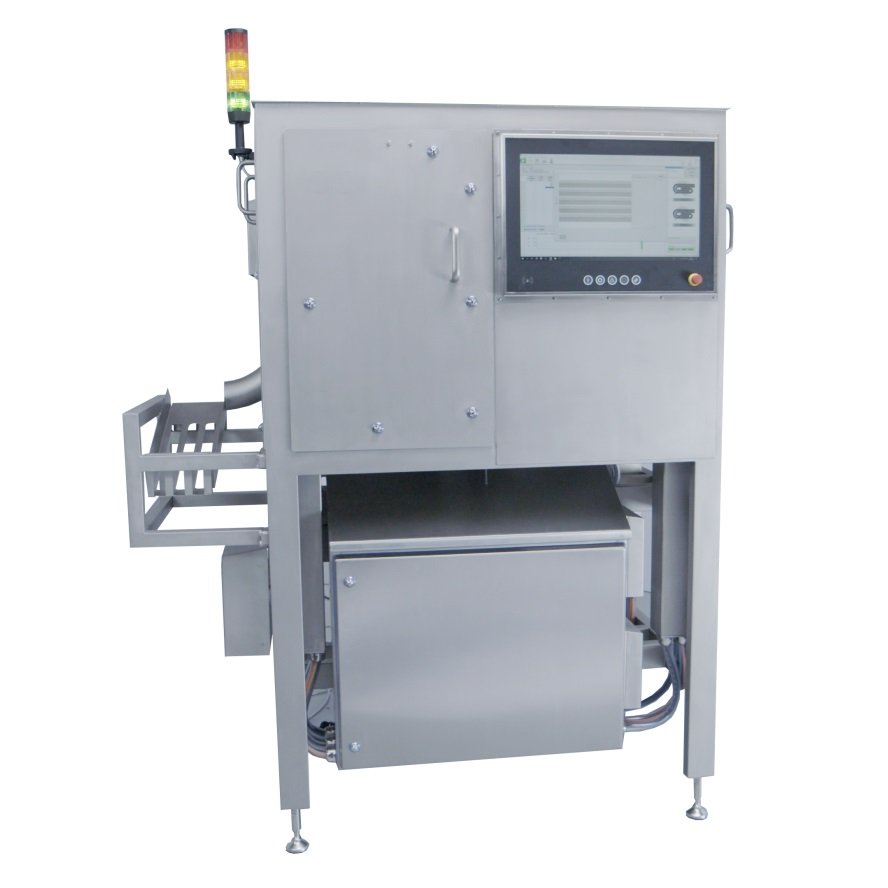

The AUTO-XTS is a fully-automated, on-line or stand-alone measurement system that provides non-destructive, complete double seam inspection for beverage fillers and metal cans. The CMC-KUHNKE AUTO-XTS will increase the accuracy and speed of your testing and inspection processes and reduce spoilage, saving you time and money.

X-ray imagine with the Auto-XTS

This test and inspection solution combines the internal X-ray seam measurements of the SEAMscan XTS with a second station for external measurements into one robust unit, providing faster inspection results, and reduced labor costs. The proven, patented technology of our zero-waste solution lets you measure cans in a fraction of the time.

Versatile testing

The AUTO-XTS is a versatile testing unit that offers excellent safety features. Its automated process protects users from seam saws, metalburrs or seam teardowns.

The AUTO-XTS offers accurate double seam measurement, allowing you to assess: seam thickness, countersink depth, seam height, body hook, cover hook, overlap, seam gap, % body hook butting and wrinkle rating (% tightness).

How the AUTO-XTS works

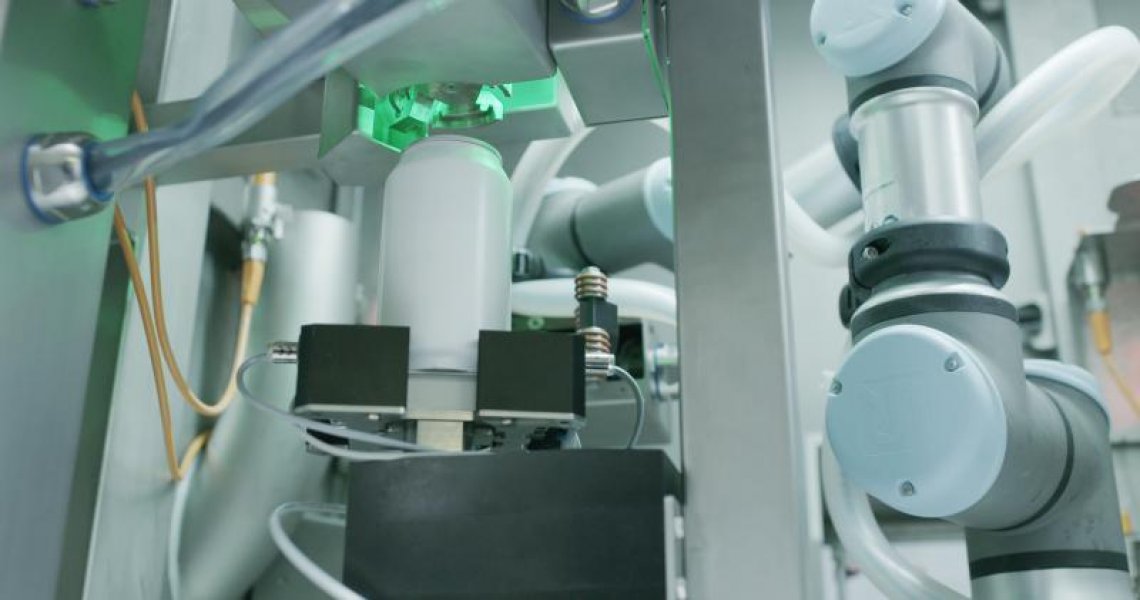

A robot handling system moves a complete range of filled beverage cans through the measurement stations.

1. Countersink Depth & Seam Thickness Measurement
Station #1: The can is automatically carried to Station #1 for measurement of Countersink Depth and Seam Thickness using CMC-KUHNKE’s TSG Gauge series. Measurements are made in up to 36 locations around the can.

2. X-Ray Imaging
Station #2: Patented XTS technology uses safe, low-power X-ray imaging to measure internal parameters of the seam, including tightness. The content is not affected by the X-ray.

3. Accept or Reject Cans
Station #3: A convenient out-feed. Once the double seam inspection has been completed, the cans are placed in order by head number either onto a conveyor for online systems, or into a carrying basket for manually loaded systems.

Specifications:

Connectivity Required:   Connection to LAN (RJ45), 1 fixed IP Address (for external database access)

Measurement units:   mm, in

Resolution:   0.01 mm (0.0004 in)

Output:   RS232

Electrical power required:   100-240VAC 50-60Hz, average power consumption 600W

Air pressure:   6-8 bar (90-145 psi), filtered dry air, max flow 35 SCFM

Can Size:   Body diameter 52-73mm, Height 89-201mm, End diameter 200/209

Languages:   English and German (Other languages can be supplied if needed)

Characteristics:  Seam Thickness, Countersink Depth, Seam Height, Body Hook, Cover Hook, Overlap, Seam Gap,% Tightness (360o scan) % Primary Sealing Area

Dimensions:  Height 2245mm + 50mm adj. feet, Width 2375mm, and Depth 1403mm

Weight:  ca. 1000kg
