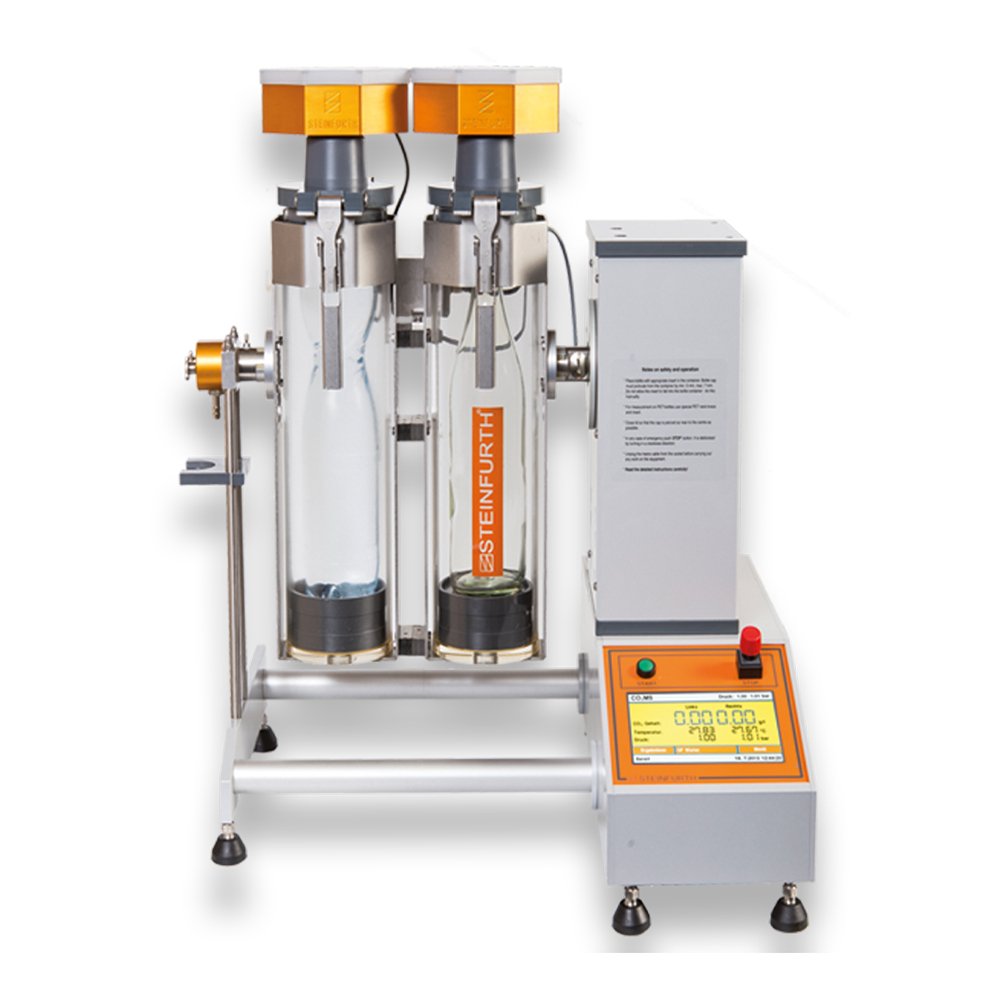

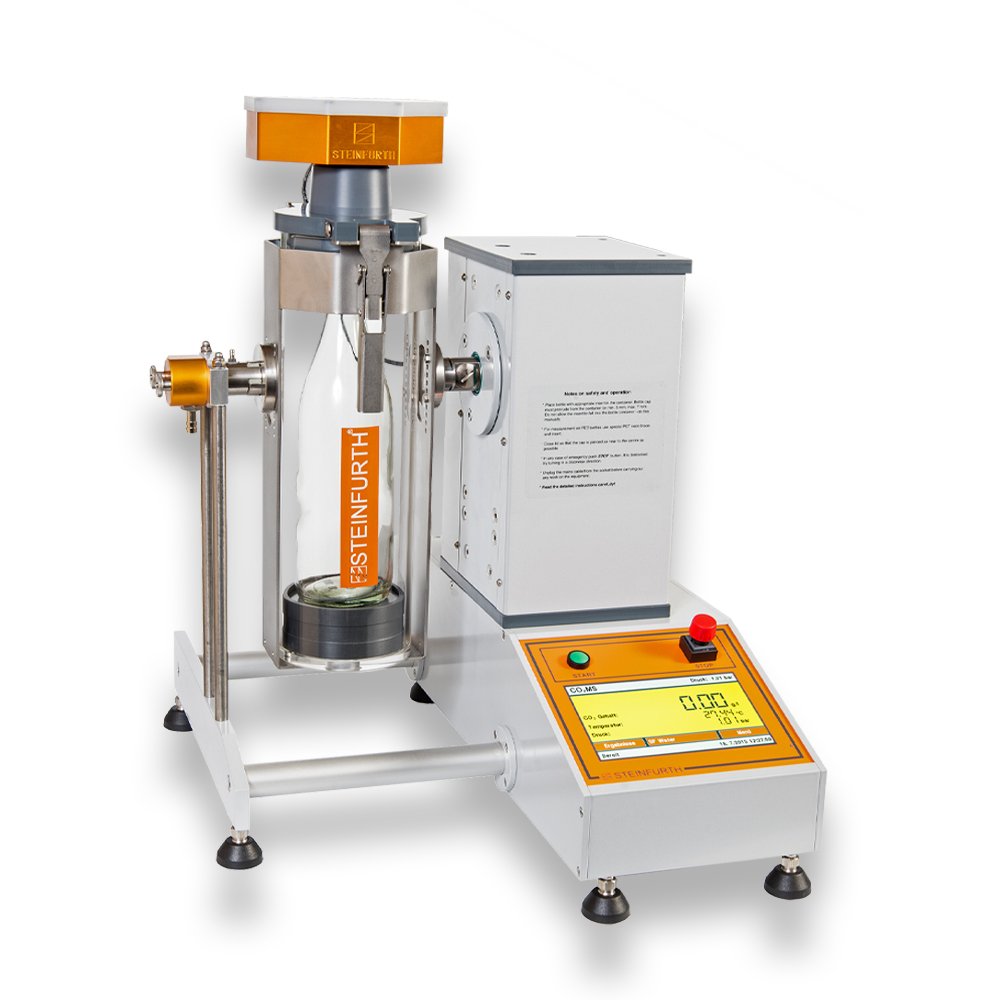

Steinfurth Automatic CO2 Tester CDA MK-6

The CDA MK-6 measures pressure and Temperaturee simultaneously, calculates the CO2 content and transfers the measurement results via data-interface to the base-unit. A dynamic sample preparation, low-maintenance construction and easiest calibration round-up the high-precision measurement. Each measurement procedure is ex-factory customized to the specific measuring medium and runs fully automated. The flexible programmable control unit writes every parameter as a measurement protocol in the internal memory, where in detail CO2-content, pressure, Temperaturee, date, time, current number, serial number of the machine and specific sample code enable a perfect conformability. The base unit integrated touchpad allows a direct, color based classification of the measured results; by the beverage quality is perfectly visualized. Different settings are very easy and extreme fast adjustable via barcode scanner, user interface or the customizable data interface of the CDA MK-6, whereby even in the case of changing samples or operators the maximal process efficiency is secured.

Specifications:

Package type:  bottle or can

Duration of measuring:  approx. 2 minutes

Data output:  LCD and RS 232

Power supply:  230 VAC / 115 VAC

Accuracy (pressure):  +/- 0.03 bar (0.44 PSI)

Accuracy (temperature):  +/-0.3 °C (0.54°F)

CO2 repeatability:  +/- 0.05 g/l (0.025 vol)

Max. pressure:  10 bar (145 PSI)
