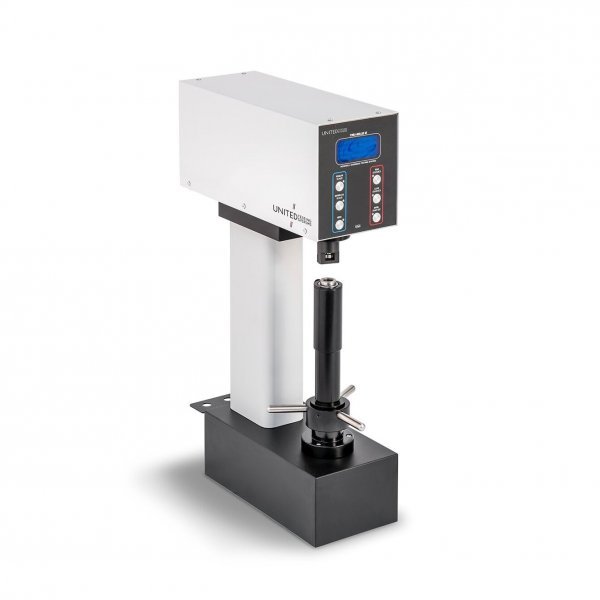

Tru-Blue II Rockwell Hardness Tester

The True Blue II Hardness Tester is used in many NADCAP approved facilities including heat treaters, fastener manufacturers, and fabricators.
Available in test heights from 10”, 14”, 18” and 20″.
Meets all NIST, ISO, CE, ASTM requirements.

15 Regular scales: A, B, C, D, E, F, G, H, K, L, M, N, P, S, V
15 Superficial scales: 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X. 15Y, 30Y, 45Y
Display statistics: Avg, Range, Min/Max, Std deviation and Number of tests
Throat depth: 5.5 in. (standard)
Meets ASTM E-18 and ISO 6508 requirements.

Specifications:

Item:  TB-II-H10-D5.5

Vertical Capacity:  10″

Throat Depth:  5.5″

Closed loop:  control of test cycle

Application:  of force measured via Load Cell

Test:  5 preset test dwell times in accordance with ASTM E-18

Warranty:  2-Year factory Warranty

Certified:  CE Certified

Spec:  110 or 220VAC 50/60 Hz 1 Phase, 1 Amp

Dimensions:  8″W x 20″D x 33.5″H

Weight:  185 lbs. (84 Kg)
