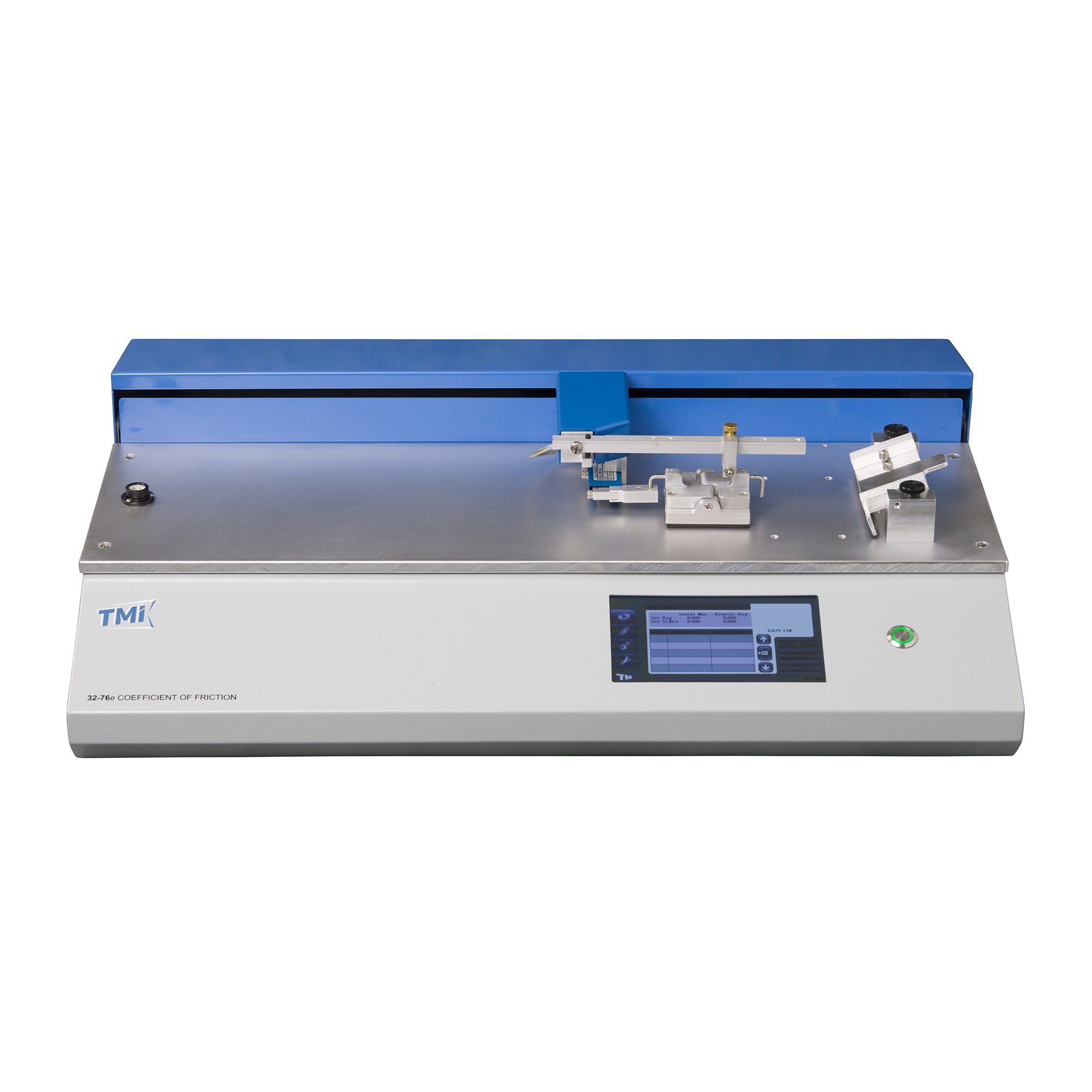

Coefficient Friction/Peel Tester 32-76e

Testing Machines Inc., is globally recognized as the leading supplier of coefficient of friction instrumentation. Our NEW 32-76e coefficient of friction/peel tester uses advanced digital force signaling and high-speed data acquisition software to provide unmatched precision and repeatability in COF and peel testing.Improved features include a color touchscreen display and intuitive software user interface for easy navigation and test method storage.New peel testing capabilities include 180ฐ peel and T-peel measurements.

Specifications:

Model:  32-76-00-0002

Load Cells:  Interchangeable load cells

Speed Range:  10-50 cm/min (4-20 in/per min)

Travel Distance:  2.5 to 30.5 cm (1 to 12 in)

Accuracy:  +/- 0.1 % of load cell capacity

Resolution:  0.001 gram based on 1000 gram/10N load cell (NOTE

Available Sleds:  100 g – 1816 g (System software accepts variable sled weights) Please specify sled.

Weight:  25 kg (55 lb)

Instrument Size WxDxH:  515mm x 495mm x 508mm (20.3in x 19.5in x 20in)

Power Input:  120/240 VAC 50/60 Hz

Data Output:  USB flash drive, USB ESC/POS printer, mini USB, GraphMasterPro™
