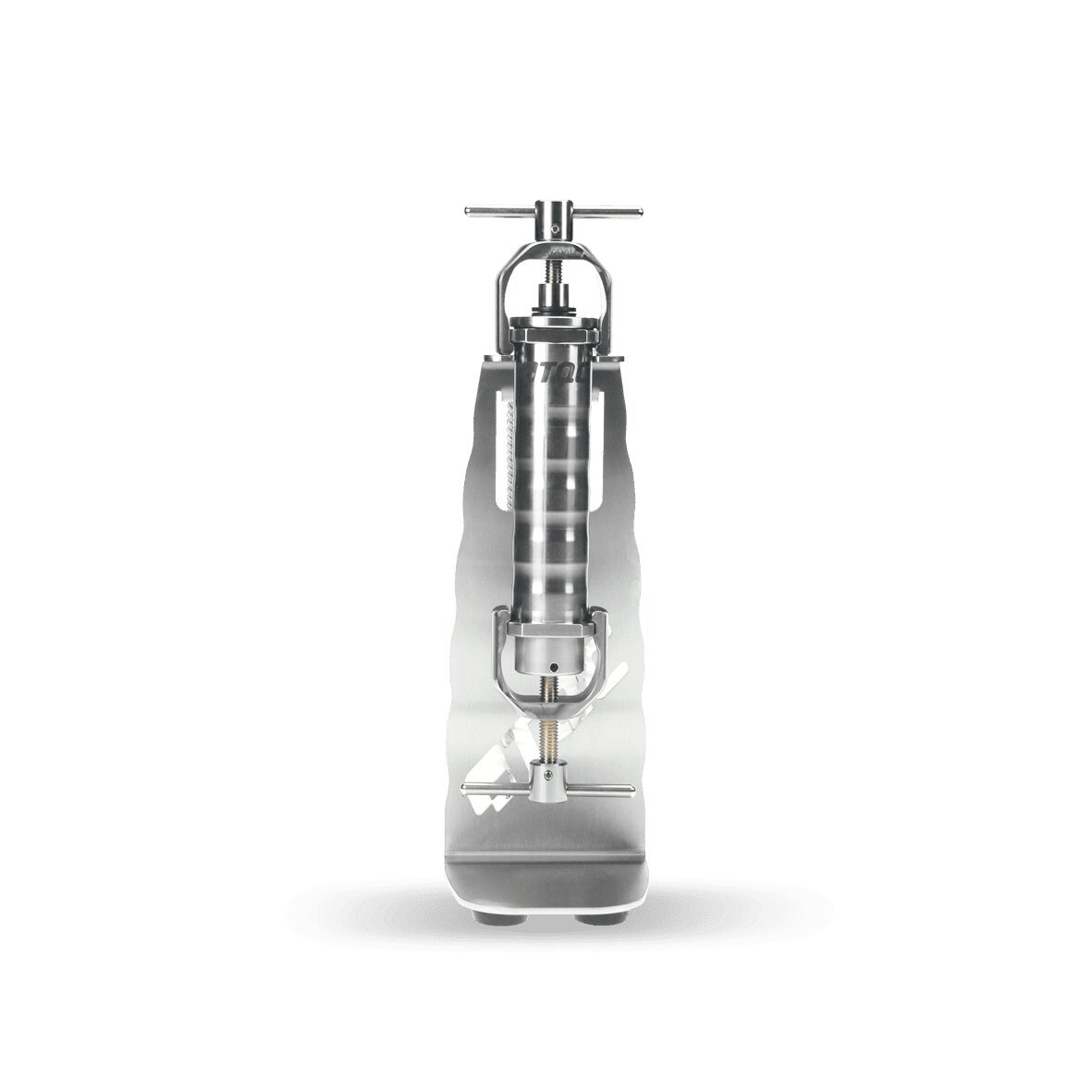

Pressure Density Cup

Pressure density cup 100ml

Density or specific gravity (SG) is affected by entrapped air bubbles in the liquid under test. The TQC VF2095 SG-cup has a fixed internal volume of 100 ml. which is to be compressed by the mechanism of the density cup.

After rotation, agitation or dispersion gas and air can be entrapped within the material. Under pressure the air will dissolve better into the liquid and any bubbles that are left undissolved will be compressed to a fraction of their original size. Density of the liquid is defined at a very high level of repeatability by weighing.
The TQC Pressure density cup can easily be taken apart to allow easy cleaning.

Specifications:

Dimensions:  LxWxH – 250x 90 x 50mm / 9,8×3,5×2,0 inch

Weight:  Pressure density cup

holder, brushes:  1750 g / 3,86 lbs

Material:  Stainless steel

Compression:  10bar

Volume: 100ml*
