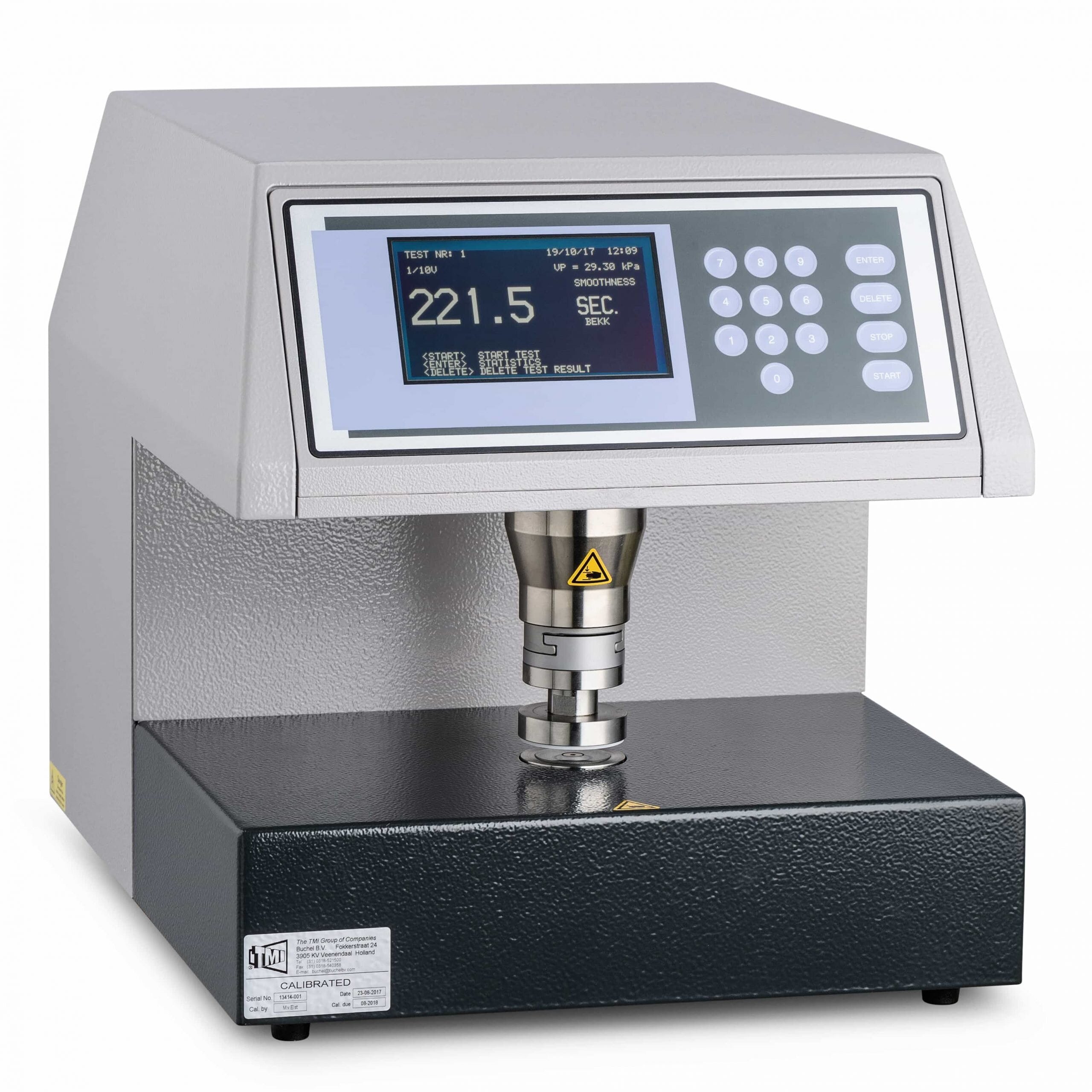

Bekk Smoothness Tester 58-05

An innovative new feature is the Estimated Test Result. It was implemented to save the operator time when setting up a new test series and choosing the pressure interval and volume setting but also to save the operator time when doing a quick single test to see what the value of the paper approx. will be. The ETR value is calculated after the test has been started (50.66 kPa) based on the rate of rise of pressure. After 10 seconds the ETR value is displayed. During the test the ETR value is constantly re-calculated and updated until the ETR value at 48.00 kPa is the same as the final test result.

Specifications:

Estimated Test Result: Approx. 10 seconds
Menu Selectable: Air volumes, Pressure interval
Data collection: RS-232 C serial data output
Display: Large black & white liquid crystal graphic high-contrast
Calibrations: using Paper tabs
Pressure Interval: 50.66-48.00 and 50.66-29.33 kPa
Range: 0-99,000
Depth: 530 mm (21 in.)
Height: 415 mm (16.5 in.)
Width: 390 mm (15.5 in.)
Weight: 51 kg (113 lb)
Electrical: Specify voltage requirements when ordering
Air: (instrument quality) 600 kPa
