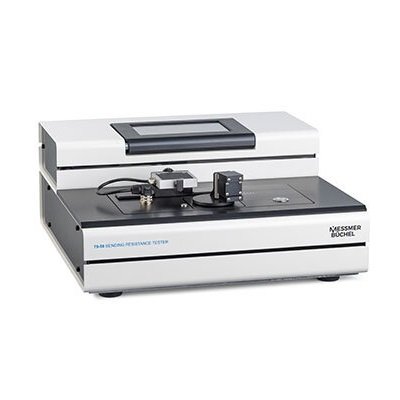

Bending Resistance Tester 79-56

Model 79-56 is a user-friendly microprocessor controlled instrument to determine the bending resistance of paper, Paper, plastic film, medical tubing, and wire. Bending stiffness is a characteristic associated with the rigidity of a material. This property is related to the modulus of elasticity of the material’s stiffness. Our Bending Tester was originally developed to produce a more concise, consistent measurement for the paper industry. This property is now used in a variety of industries including personal products, paper, flexible films, packaging and non-wovens.

79-25 Messmer Buchel Bending measuring the force to bend a test piece to a predetermined angle.
Bending resistance and stiffness is used in many converting companies and is important in handling packaging products.

Specifications:

Load cell:  10N or 1000mN load cell

Min. force sensitivity:  0.5mN with 1000mN load cell

Selectable bending angle:  5.0-90° and test length 5-50mm

Output: RS232 serial data output, printer output and analog signal output

Depth: 330 mm (13 in.)

Height: 180 mm (7 in.)

Width: 330 mm (13 in.)

Weight: 15 kg (33 lb)

Electrical: Specify voltage requirements when ordering

Air: (instrument quality) 400-600 kPa700 kPa (90 psi) max. supply pressure
