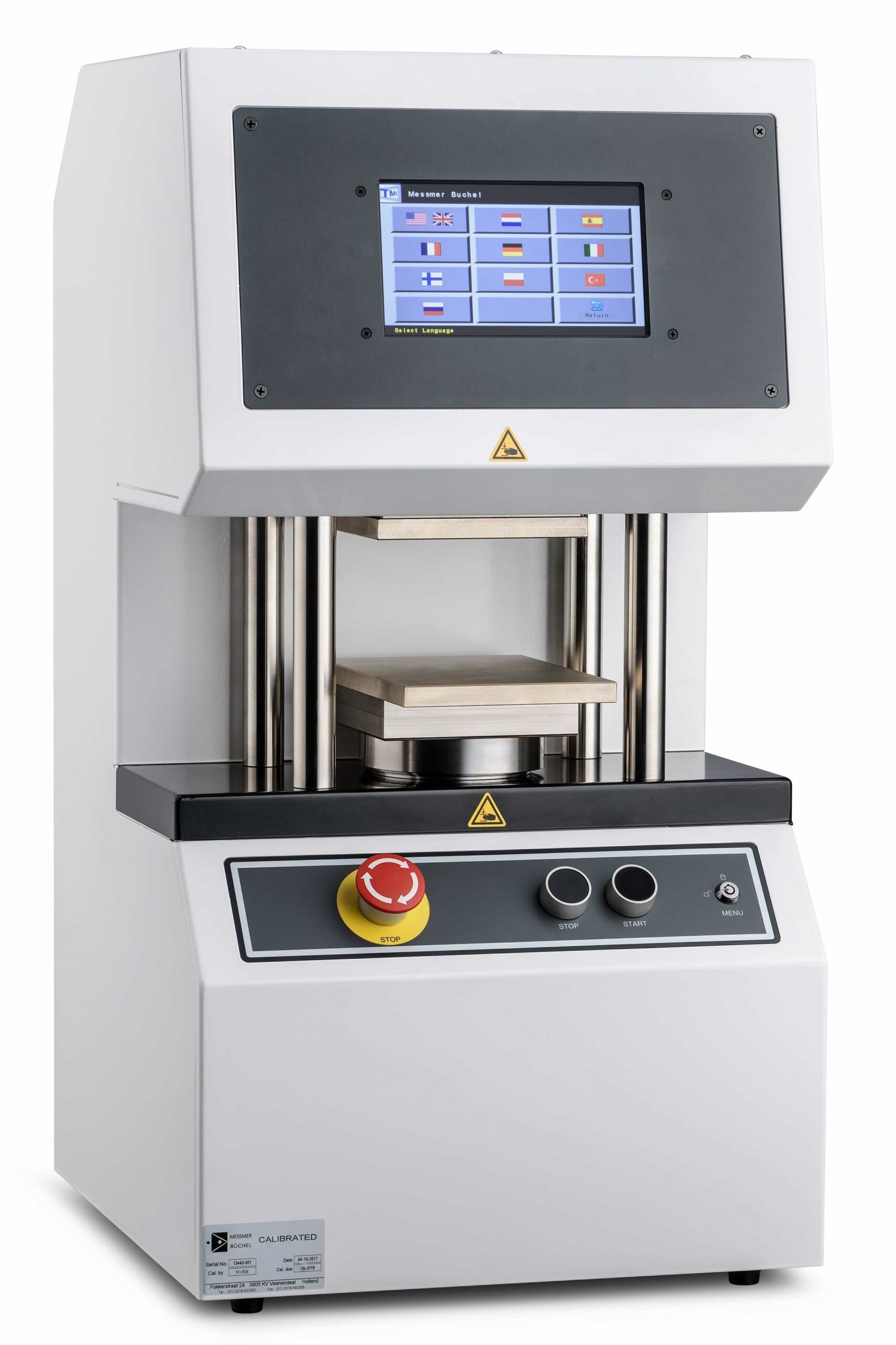

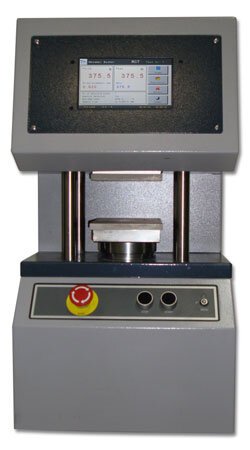

Crush Tester 17-56

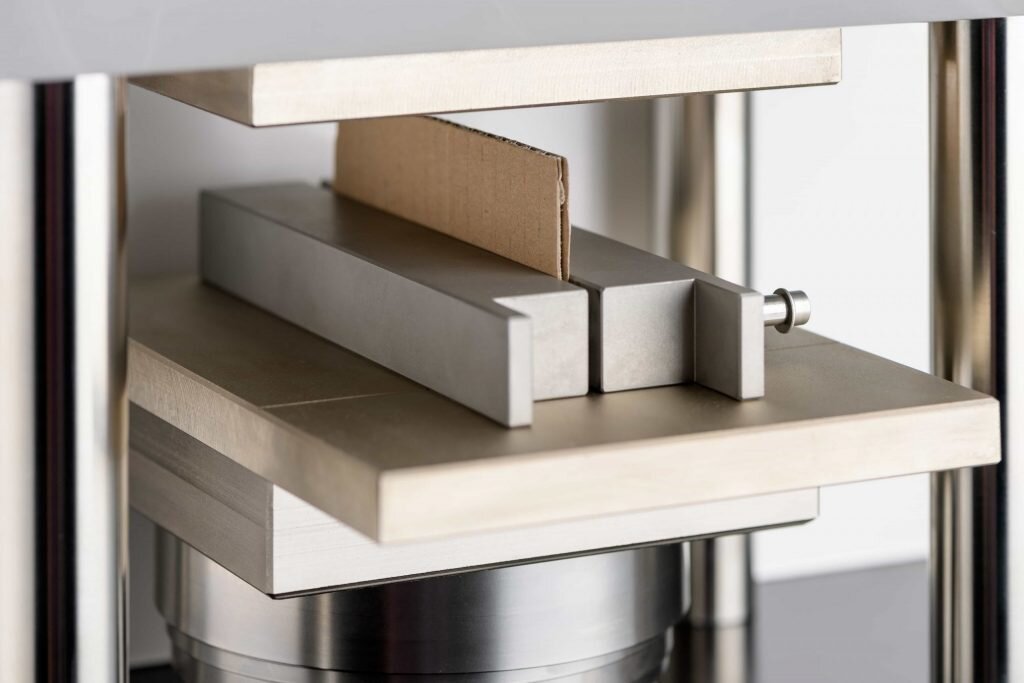

The Crush Test is designed as a robust, easy to-use instrument. Exactly what you need when performing crush tests. The Crush Tester is suitable for a wide variety of samples, including corrugated board, tubes, corruaged paper and plastics. The special sample holders extend the instrument’s possibilities. The accuracy is achieved with a precision load cell, which is even accurate at low force values.From Messmer Messmer Büchel BV, a Testing Machines Inc Group of Companies brand.

Not for plastic and polymers.

Specifications:

Measuring units:  N, lb, N/m, lb/in, kPa, lb/ft, lb/inฒ, kN/m
Measuring range: 0,000 – 5,000 N (1,125 lb)
Stroke length:  4 – 78mm (0.158 -3.07 in)
Test speed:  5-50 mm/min (0.2 – 2.00 in/min)
Return speed:  ≥ 100 mm/min (4.00 in/min)
Upper platen:  125 x 125mm (4.92 x 4.92 in)
Lower platen:  180 x 125mm (7.08 x 4.92 in)
Accuracy:  1% of reading
Overload protection:  Adjustable, max 5000N
Language:  7 different
Electrical:  100 – 230 VAC, 50/60 Hz
Dimensions:  370 x 400 x 710 mm (WxDxH) (14.5 x 15.7 x 28 in)
Weight:  69 kg (152 lbs)
