Colorbox – illuminated assessment cabinets

Multi-Source Viewing System for the Inspection and Colour Matching of Inks, Paints, Plastics, Cosmetics, Textiles, Knitwear, Leather, Food, Paper, Colorants, and other coloured materials.
TQC Colorboxes offer an extensive range of illumination conditions for any visual inspection. The multiple selectable light sources allow assessment of gloss, structure, damages and metamerism. The Colorboxes are available in 60 and 120 cm width. All are supplied with a removable viewing table and runtime counter. Both interior and exterior are finished to the highest quality standard. The ability to switch between light sources without flickering makes the cabinet extremely stable. TQC Colorboxes are equipped with a 110V / 220V switch.

Specifications:

VF0600 Light sources:
Artificial Daylight D65 Fluorescent (ISO 3668) 2 X 18W 6500K
Department store light TL84 Fluorescent 2 X 18W 4000K
Home Light Incandescent A  4 X 40W 2700K
Ultraviolet Light 1 X 18W 365nm
Artificial Daylight D5000 Fluorescent (ISO 3664) 2 X 18W 5000K
VF1200 Light sources:
Artificial Daylight D65 Fluorescent (ISO 3668) 2 X 36W 6500K
Department store light TL84 Fluorescent 2 X 36W 4000K
Home Light Incandescent A  8 X 40W 2700K
Ultraviolet Light 1 X 36W 365nm
Artificial Daylight D5000 Fluorescent (ISO 3664) 2 X 36W 5000K

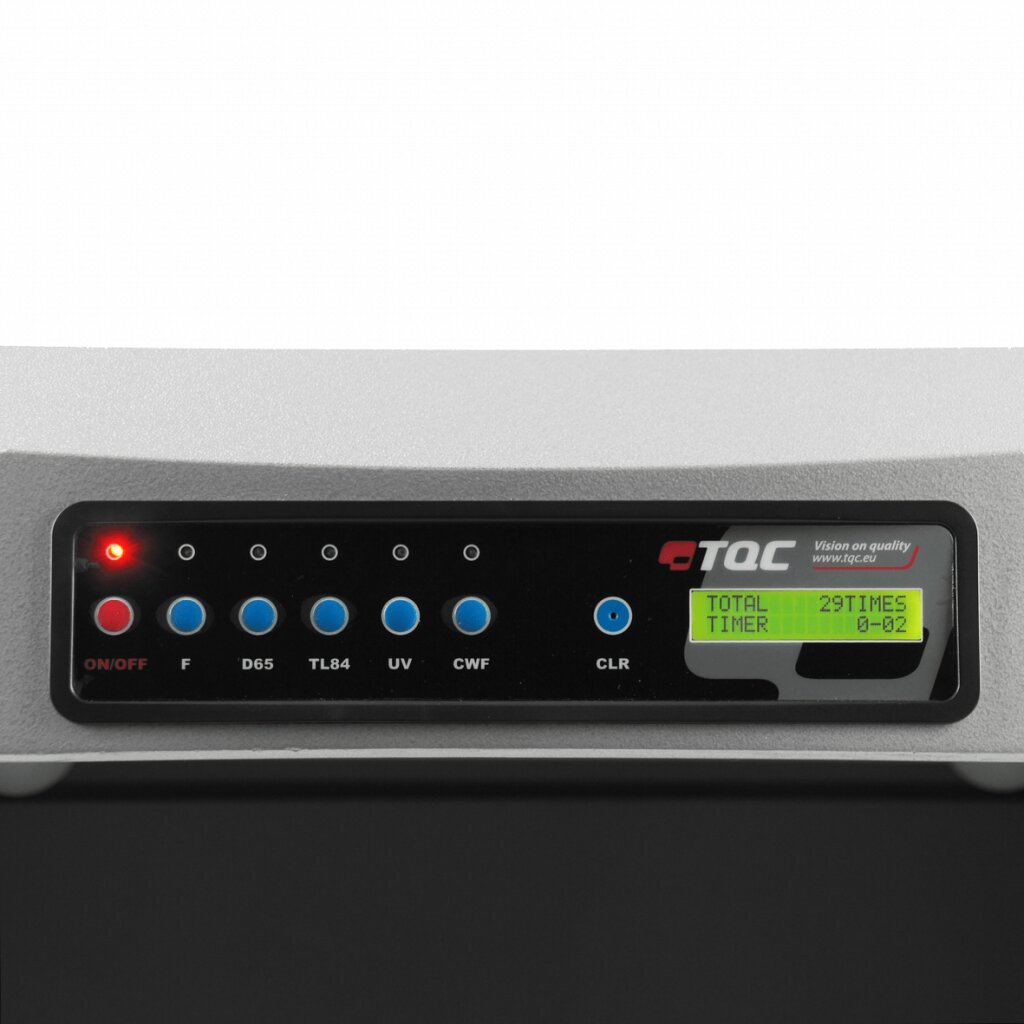

TQC Color Boxes are made of strong MDF material which is painted on the inside in neutral matt Munsell N5,5 Gray. Both models incorporate interlocked membrane switches with electronic ballasts for a flicker-free “Instant On”.

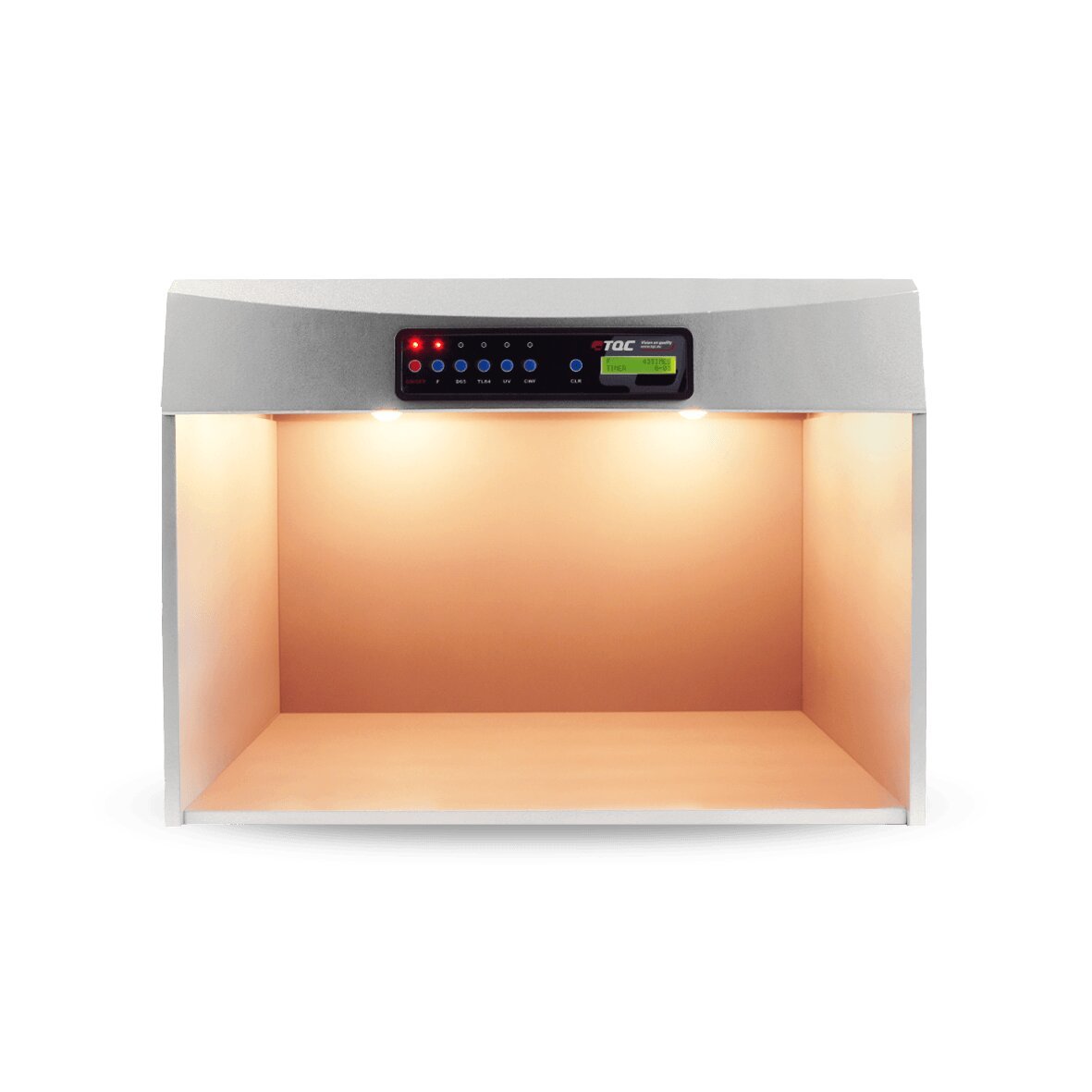

TQC Colorbox colour assessment box, 60cm with 45 ° sample table.

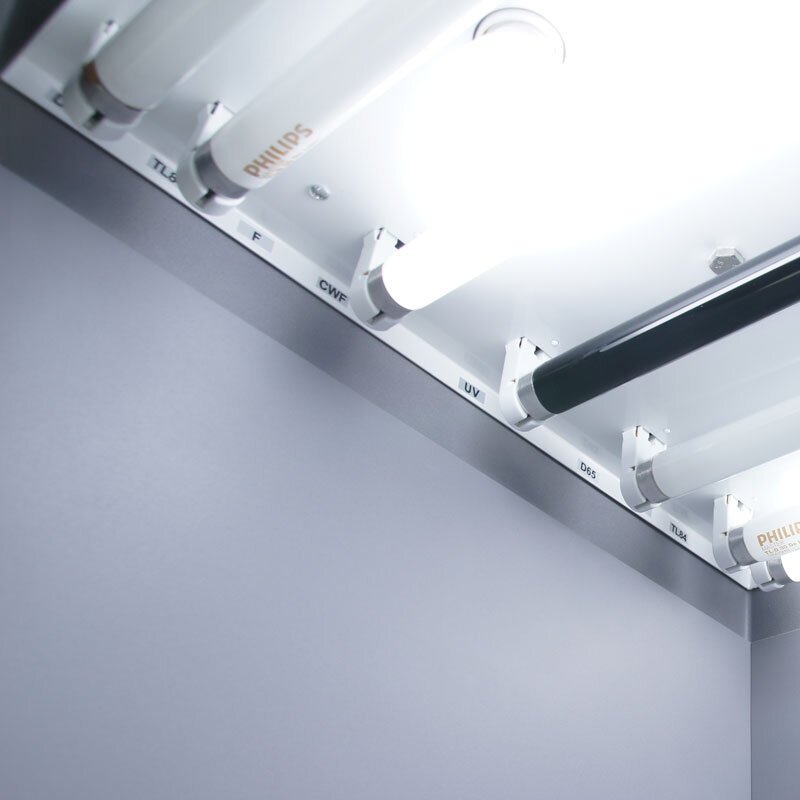

Light sources:
Lamp type “A” 40 W E 27
Light tube “shop light” TL84 (F11) 60cm
Light tube “day light” D65, 60 cm
Light tube “day light” D5000 (D50) 60cm
Light tube “black light” UV 60cm
