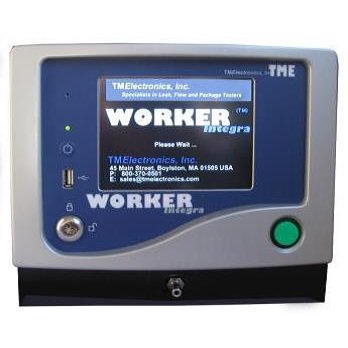

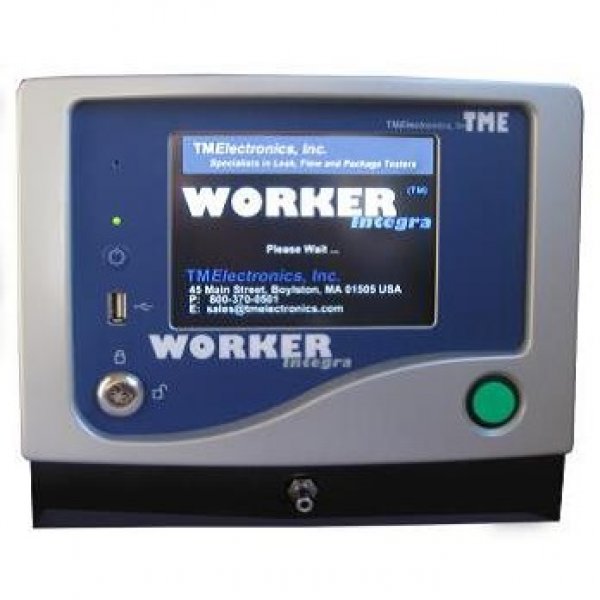

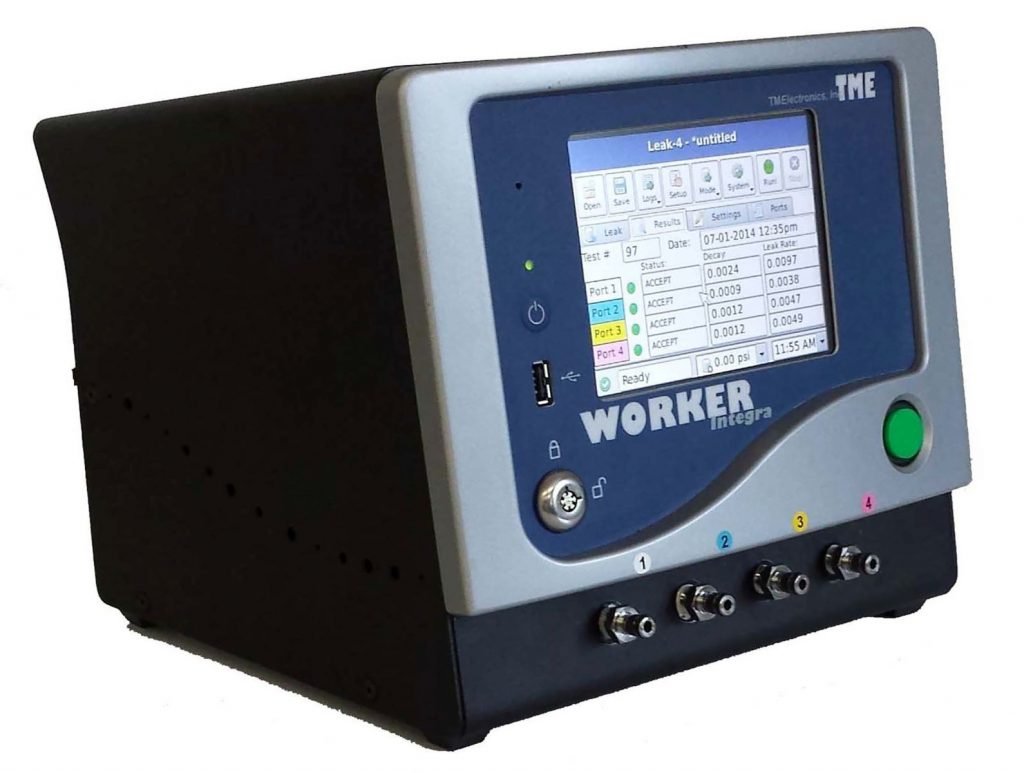

The Smart TME WORKER Integra

Leak or Leak and Flow Test System
The smart TME WORKER Integra is an intelligent instrument making programming, testing, downloading, printing, storing, accessing, reviewing test results much easier than it has been done in the past.

TME WORKER Integra™ with Smart Capabilities
TME worker integra leak test flow test Worker Integra Leak test and Flow Test – TM Electronics
Pressure or Vacuum Decay | Leak or Leak/ Flow Test System | Backpressure Occlusion

Specifications:

Small Footprint: 10″Wx10″Dx9″H

Security Controls: Key Lock

Display: 5.7” QVGA Color Touchscreen

Pressure Control: Manual or Electronic

Units: Psig, InH2O, mBar, kPa, inHg, ccm, LPM, cfm

Test Modes: Leak, Flow, Occlusion

Memory Capacity: 128 Mbytes (Expandable up to 512Mb)

LAN (Network):  Web-browser & more

Test Modes: Leak, Occlusion, Flow

Range (PSIG):  -13.5 to 150

Resolution (PSIG):  0.0001 (-13,5 to 150)

Pressure Accuracy:  +/- 0.5% FSD

Repeatability (6 sigma/FSD):  <1%

Flow Ranges (SCCM): up to 10.000

Flow Accuracy: +/- 2% FSD
