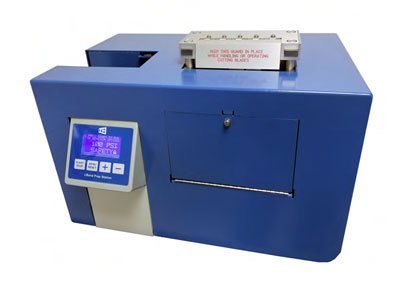

Internal Bond Sample Prep Station 80-30

A consistent method of sample preparation is necessary to insure repeatable test data. The Testing Machines Inc Ibond prep station automatically presses and cuts test specimens to exact requirements providing significant improvements in testing precision. The 80-30 Sample Prep Station provides a consistent adhesive transfer when pressing the test specimen between the double-sided tape and aluminum platens.

Specifications:

Dwell time:  1 to 4 seconds

Selectable units:  kPa and psi

Sample Press Timer:  user adjustable 1-40 seconds

5 Aluminum platens:  sample size of 25.4 x 25.4 mm (1.0 x 1.0 inches)

Sample thickness range:  up to 1.25 mm (0.050 inches)

Clamping pressure control:  690 kPa (100 psi) +/- 20.7 kPa (3 psi)

Selectable samples cuts:  1-50 times

Air requirements:  283-682 kPa (80 ““ 125 psi) Filtered/Dry Air

Dimensions:  H 49.3 cm x W 32.3 cm x D 35.5 cm (H 19.4 in. W 12.7 in. D 14.0 in.)

Weight:  22.7 kg (50 lb.)

Power requirements:  80-264 VAC, 47-63Hz
