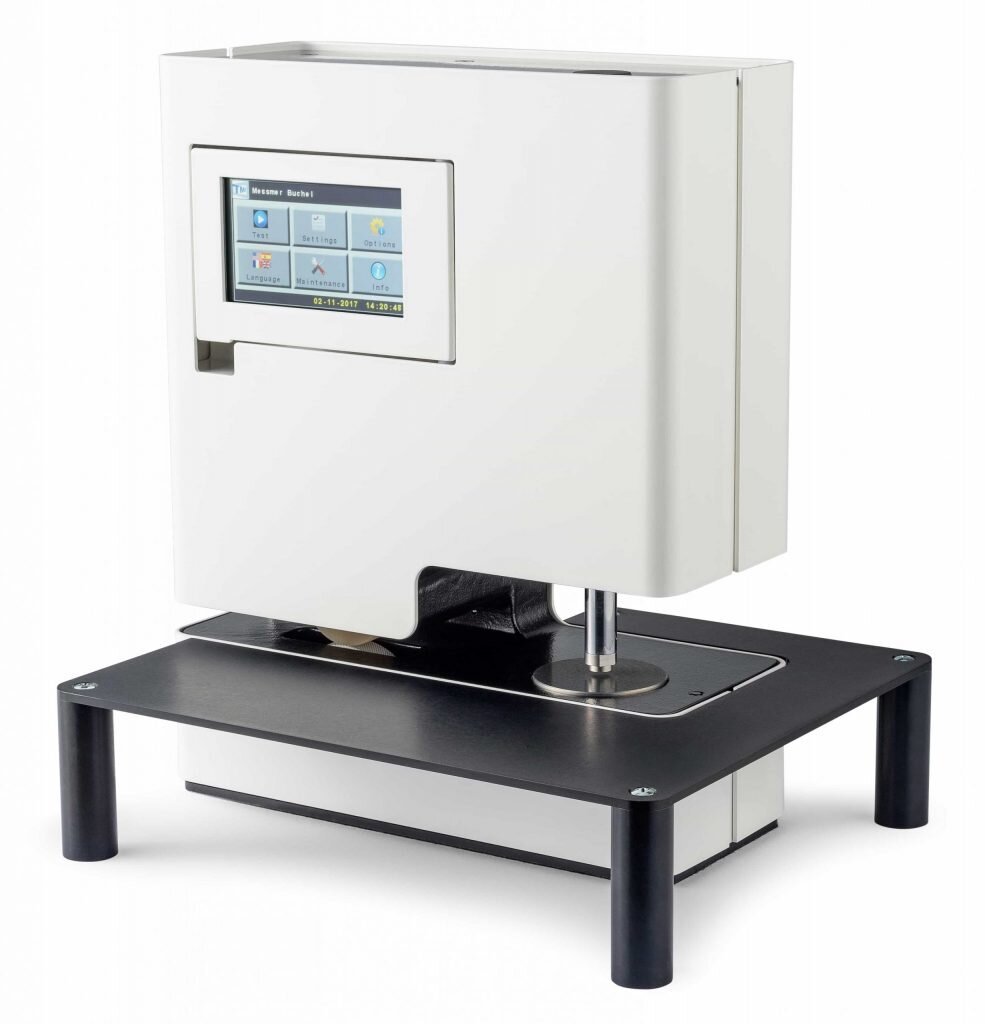

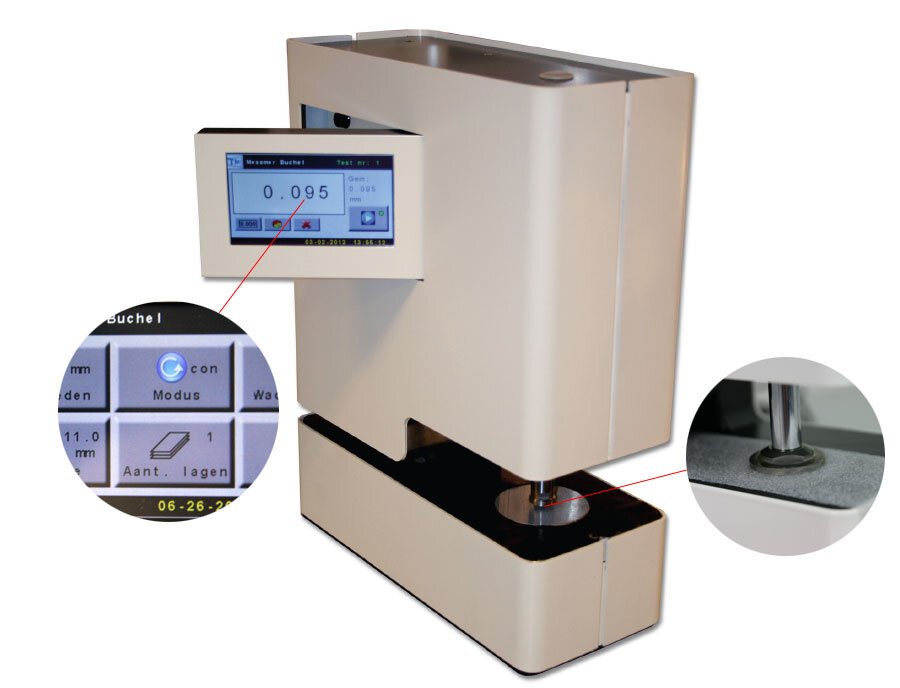

Digital Micrometer 49-56

The model 49-56 Digital Micrometer combines unmatched accuracy and resolution, a modern contemporary look with a robust mechanical design and new improved electronics, including a digital linear encoder. The unit has a measurement range of 0 – 10.0000 mm (0 – 10,000.0 um), 0 – 394.000 mil. Designed for thickness measurements of sheet materials, the 49-56 can be configured to meet any ISO, ASTM, EDANA or other International specifications for paper thickness, corrugated, plastics, plastic film, tissue paper, nonwovens, textiles and other sheet-like substrates.

Specifications:

Model:  49-56 Series

Measuring units:  μm, MM and mil

Measuring range:  0 – 10 mm; 0 – 10,000 μm; 0 – 394 mil

Accuracy:  within 0.001 mm (0.00004 in.) or 1% of paper thickness, whichever is better (Special configurations might influence the accuracy)

Resolution:  1.0/0.1 μm (0.01 mil/0.001 mil) on request

Anvil dimension:  several options

kPA:  several options (Contact us with your requirements)

Lowering speed:  0.8 -5.9 mm/sec

Languages:  9

Electrical:  90 – 230 V and 50/60 Hz

Dimensions LxWxH:  265 x 110 x 335 mm (10.4 x 4.3 x 13.2 inch)

Weight:  ± 13 kg (28.6 lbs)

Output:  RS232 and Printer Connection

Connection: 90-260V AC/47-63Hz
